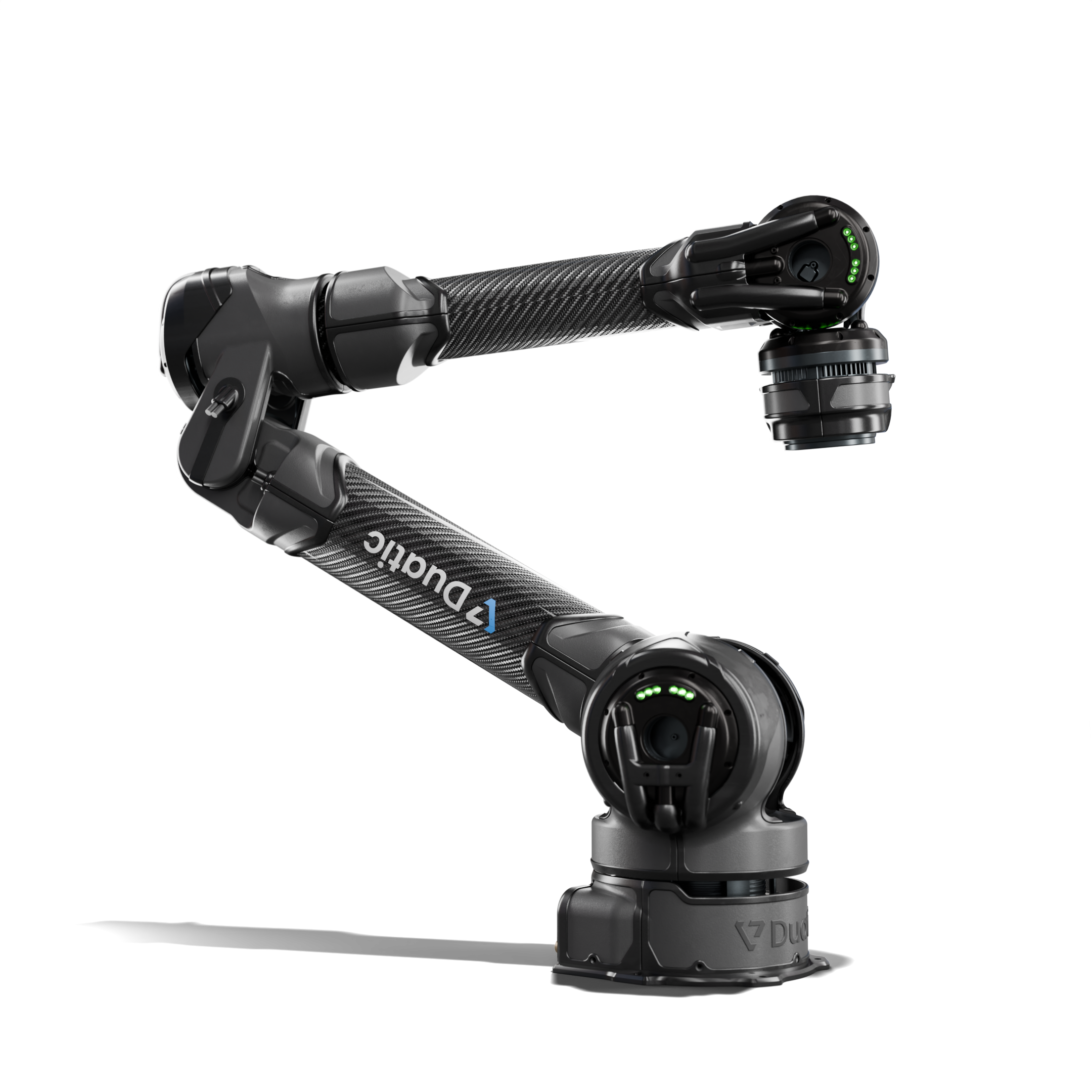

DynaArm
The DynaArm is an ultra-lightweight yet powerful robotic arm, designed for dynamic applications like mobile robots. With a weatherproof IP66-rated build, it operates flawlessly in harsh conditions. Featuring gravity compensation, full-state access, and an open API, the DynaArm enables researchers, engineers, and developers to push robotic control beyond limits.
- Ultra-lightweight and powerful
- Weatherproof IP66-rated
- Full-state access and open API
- No external control box required
- Swiss made
DynaArm 6DOF
Continuous Payload
6 kg
Total Weight
9.2 kg
Reach
0.990 m
Maximum Payload (10s)
12 kg
End Effector Speed
10 m/s
Joint Encoder Accuracy
± 25 μrad
Degrees of Freedom
6
Input Voltage
48 V (DC)
Protection Rating
IP66
Joint Torque Accuracy
± 0.5 Nm
Communication Interface
EtherCAT
Communication Frequency
1000 Hz
Specifications
DynaArm 6DOF
Continuous Payload
6 kg
Total Weight
9.2 kg
Reach
0.990 m
Maximum Payload (10s)
12 kg
End Effector Speed
10 m/s
Joint Encoder Accuracy
± 25 μrad
Degrees of Freedom
6
Input Voltage
48 V (DC)
Protection Rating
IP66
Joint Torque Accuracy
± 0.5 Nm
Communication Interface
EtherCAT
Communication Frequency
1000 Hz
